Case Study 03 | Retail Conversion Study (2)-Tarfful
Study 03 served as a technical follow-up to the Black Krrsantan study, focusing on character-specific silhouette modification and environmental serviceability. Using a 7.5ft Home Depot animatronic as the base chassis, I elevated the retail prop into the Kachirho Chieftain, Tarfful. The focus of this study was achieving the complex, multi-tonal fur patterns seen in Revenge of the Sith while ensuring the internal mechanics remained accessible for long-term maintenance.
Technical Breakdown
Integrated Access Seam: Performed a horizontal split of the primary fur suit, integrating a heavy-duty hook-and-loop closure system. This allows for rapid assembly/disassembly and provides direct access to internal electronics and motor housing without damaging the "hero" silhouette.

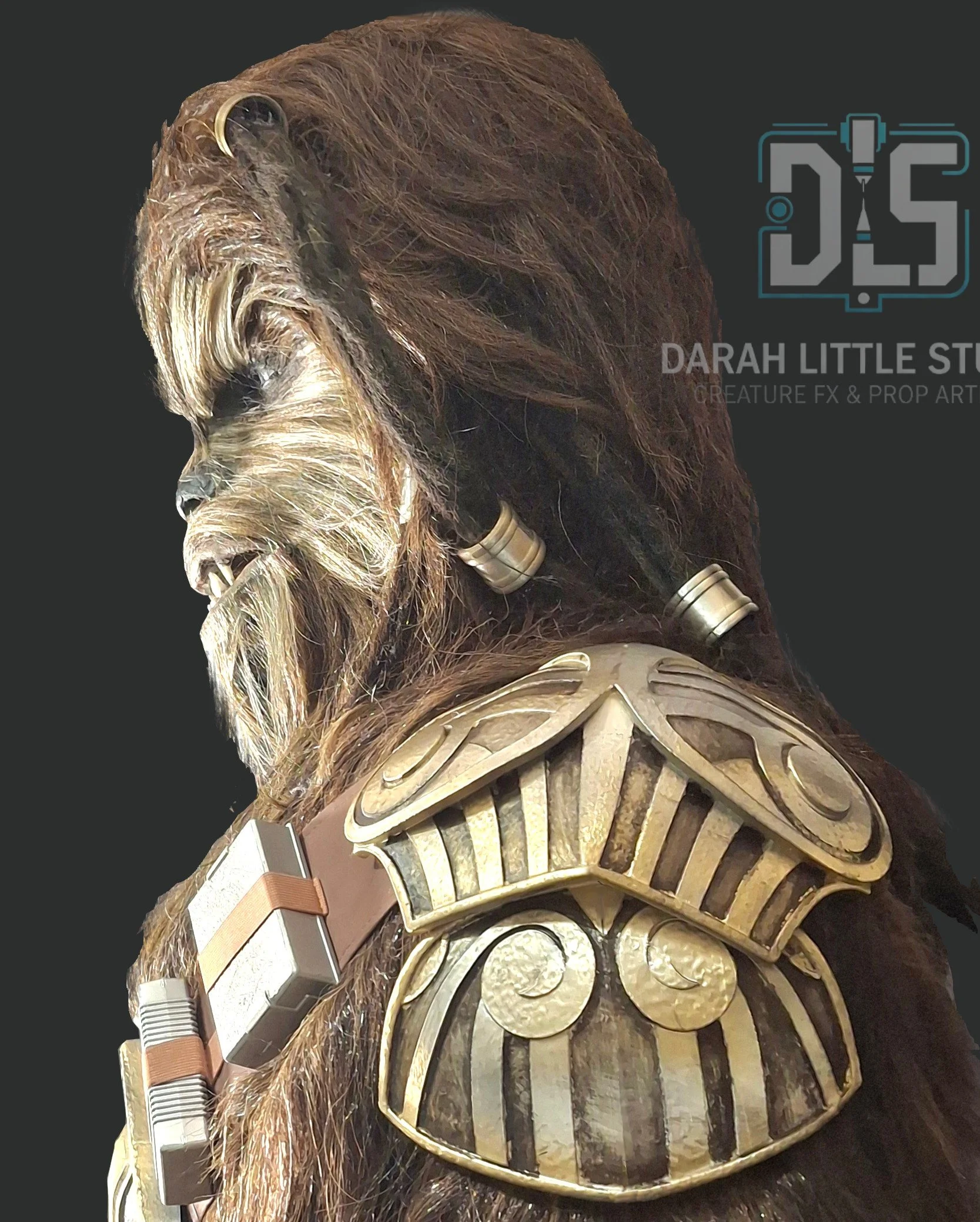

Organic Armor Fabrication: The chest and shoulder plates were fabricated to mimic the ornate, hand-forged bronze aesthetic of Kashyyyk. I utilized a combination of metal veneer and paint, skinning the plates and then distressing to achieve an aged, "heirloom" metallic finish.

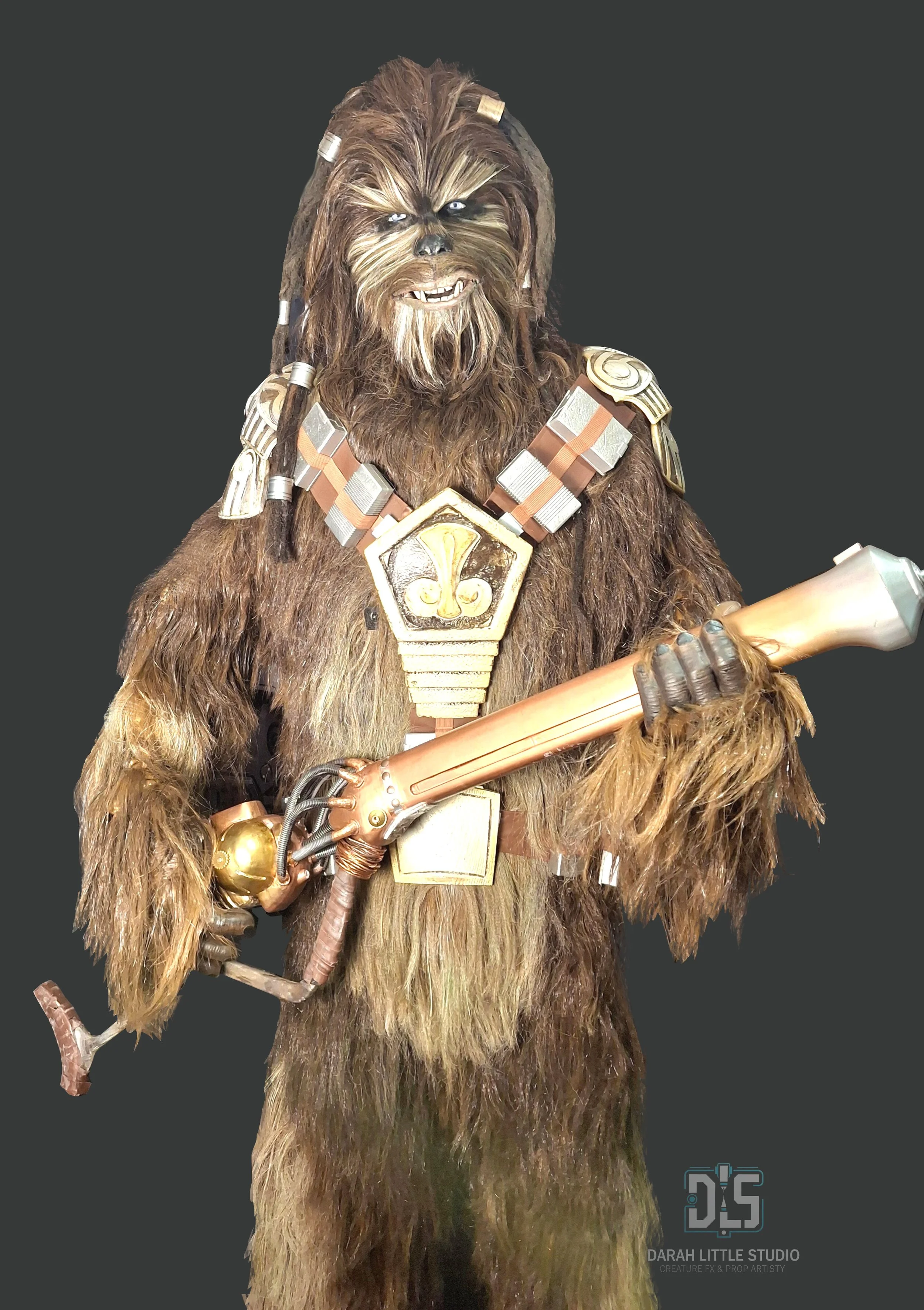

Kashyyyk Long-Gun Construction: Tarfful’s signature weapon was built to scale, featuring deep-grain texturing to simulate the appearance of Wroshyr wood. The metallic barrel and accents were weathered with "Carbon Scoring" to reflect its status as a functional combat weapon.

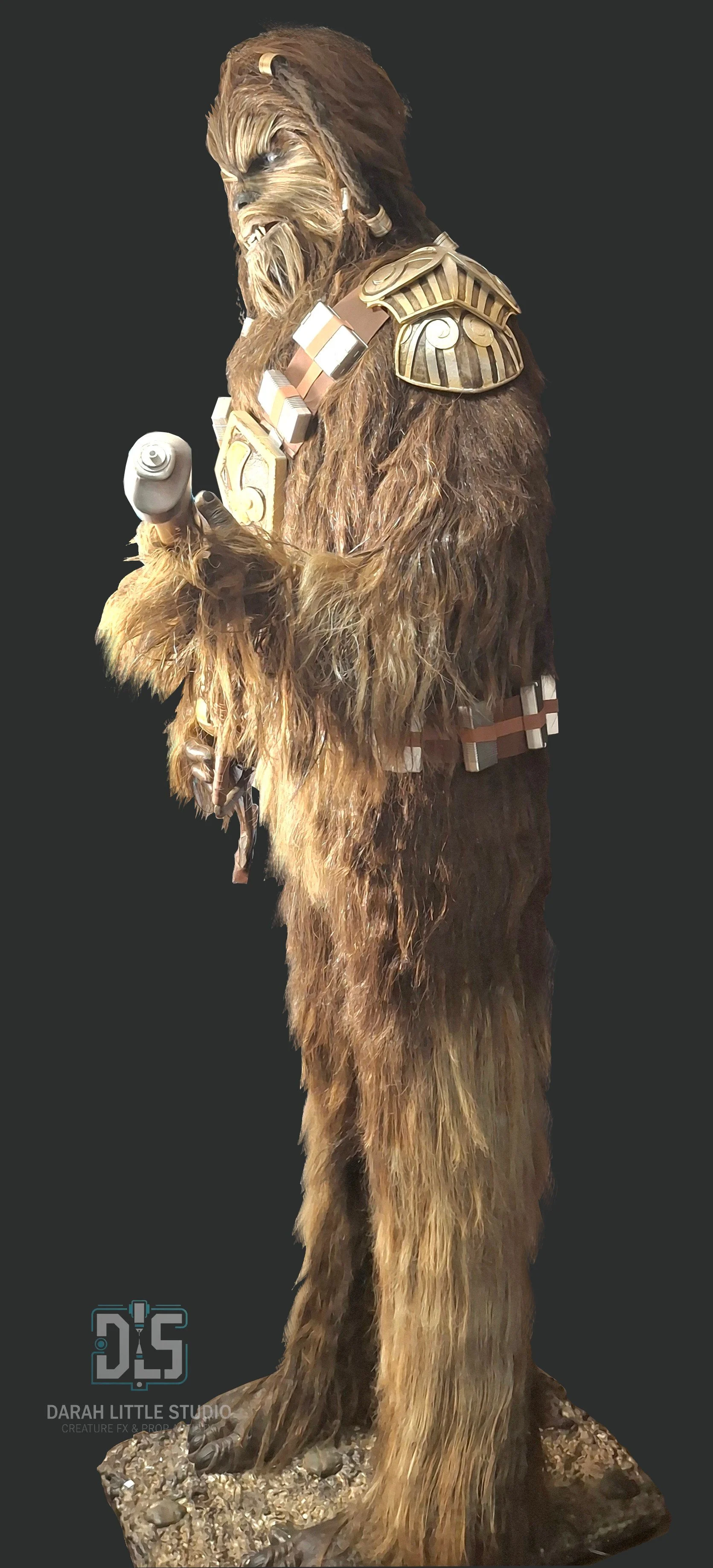

Environmental Display Base: Developed a custom floor integrated directly into the internal steel frame. Utilizing high-density spray-foam carving and multi-layered scenic painting, I created a "Rocky Terrain" display that provides structural stability while grounding the character in the Kashyyyk environment.
Chromatic Fur Mapping: Upgraded the uniform factory fur to hand-dyed and multi-tonal. This process focused on the distinct light-to-dark transition of Tarfful’s mane and facial hair, utilizing studio-grade fiber blending to achieve cinematic depth.

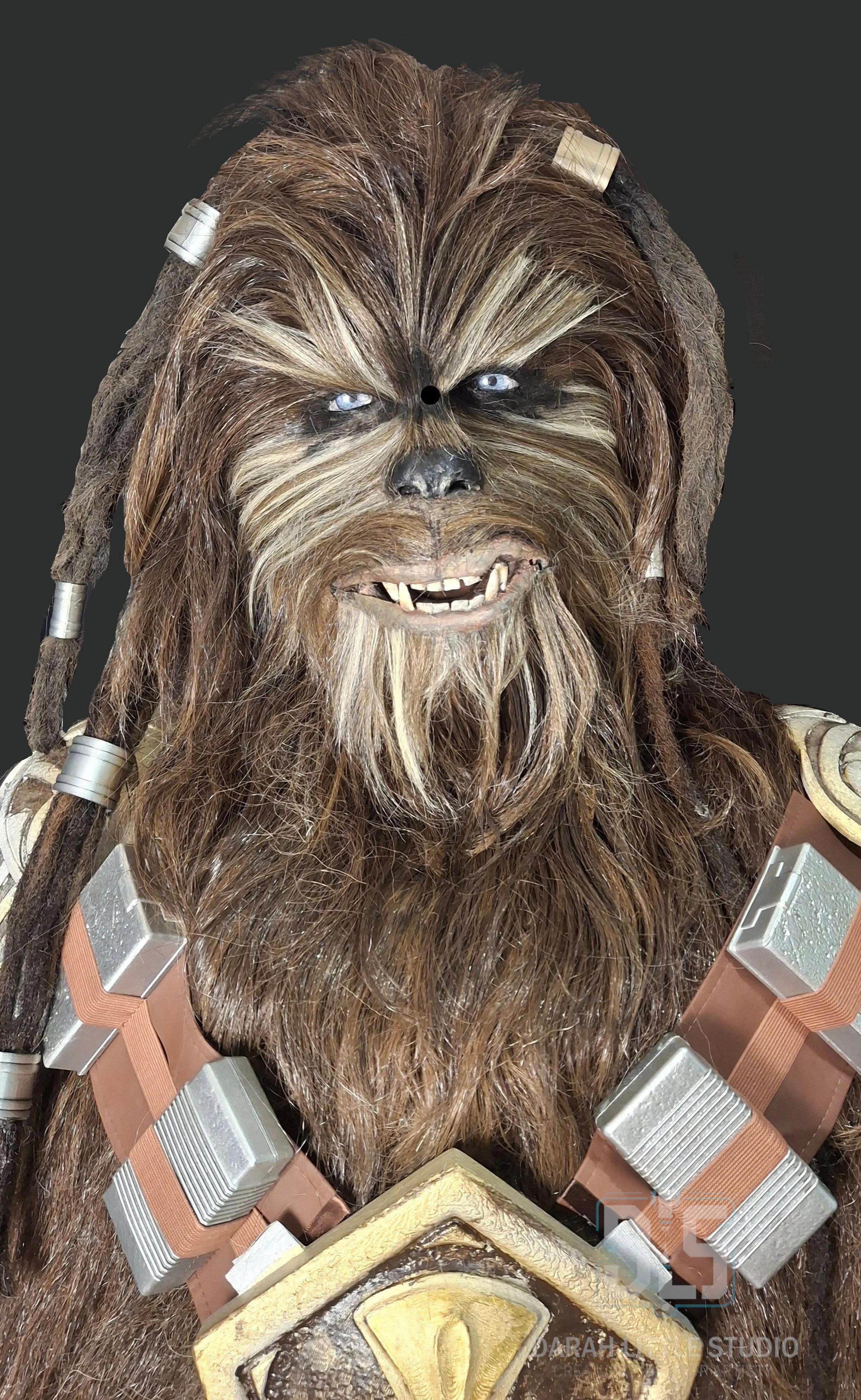

Cranial Resculpting: Stripped the factory head-form to preserve the jaw-sync mechanics while extending the facial structure to reflect Tarfful’s unique anatomical proportions, including custom-sculpted lips and a hand-painted and crafted dental set.
Anatomical Tailoring: Developed a custom padding system over the internal pole-frame to create the broad, powerful silhouette characteristic of a Wookiee Chieftain, ensuring the fur suit was tailored to drape naturally over the mechanical joints.
Fine Detailing: Hand-punched and layered facial hair for high-resolution close-up fidelity and applied targeted pigment work to the extremities to simulate the clay and dust of the Kashyyyk environment.
Structural Load-Bearing: The armor and weapon mounting systems were engineered to work with the animatronic's movement. By using a reinforced strapping system hidden beneath the fur, the weight of the armor does not impede the motor function or strain the HDPE chassis.
Environmental Logic (Shadow Masking): Applied targeted staining to the fur and leather straps surrounding the armor plates. This "Shadow Masking" simulates UV protection and grime buildup, providing the visual weight necessary for a 1:1 scale hero prop.
Study Specs
Base Chassis: 7.5ft HDPE Animatronic
Foundation: Integrated Custom Floor / Carved Spray-Foam & Scenic Rockwork
Weaponry: Scratch-built Kashyyyk Long-Gun (Wroshyr Grain Finish)
Armor: Burnished Metal Veneer with Heirloom Oxidation
Serviceability: Longitudinal Hook-and-Loop Access System
Soft Goods: Hand-Mapped Multi-tonal Fiber Blend
Detailing: Sub-Surface Shadow Staining & Environmental Weathering
